Introduction

In part 1, we introduced our sample application. In part 2, we measured the performance (cold and warm start times) of the Lambda function without any optimizations. What we observed was quite a large cold start time.

We introduced AWS Lambda SnapStart in part 3 as one of the approaches to reduce the cold start times of the Lambda function. We saw that by enabling the SnapStart on the Lambda function, the cold start time goes down.

In part 4, we introduced how to apply Lambda SnapStart priming techniques and started with DynamoDB request priming. We saw that by doing this kind of priming and writing some additional code, we could significantly further reduce the Lambda cold start times compared to simply activating the SnapStart. It’s especially noticeable when looking at the “last 70” measurements with the snapshot tiered cache effect. Moreover, we could significantly reduce the maximal value for the Lambda warm start times by preloading classes (as Java lazily loads classes when they are required for the first time) and doing some preinitialization work (by invoking the method to retrieve the product from the DynamoDB table by its ID). Previously, all this happened once during the first warm execution of the Lambda function.

In this article, we’ll introduce another Lambda SnapStart priming technique. I call it API Gateway Request Event priming (or full priming). We’ll then measure the Lambda performance by applying it and comparing the results with other already introduced approaches.

Sample application with the enabled AWS Lambda SnapStart using full priming

We’ll reuse the sample application from part 1 and do exactly the same performance measurement as we described in part 2.

Also, please make sure that we have enabled Lambda SnapStart in template.yaml as shown below :

Globals:
  Function:
    Handler:
    SnapStart:
      ApplyOn: PublishedVersions
    ....
    Environment:
      Variables:
        JAVA_TOOL_OPTIONS: "-XX:+TieredCompilation -XX:TieredStopAtLevel=1"

You can read more about the concepts behind the Lambda SnapStart in part 2 and about SnapStart runtime hooks (which we’ll use again) in part 3.

In this article, I will introduce you to the API Gateway Request Event priming (or full priming for short). We implemented it in the extra GetProductByIdWithFullPrimingHandler class.

public class GetProductByIdWithFullPrimingHandler implements
                 RequestHandler<APIGatewayProxyRequestEvent, APIGatewayProxyResponseEvent>, Resource {

private static final ProductDao productDao = new ProductDao();
private static final ObjectMapper objectMapper = new ObjectMapper();

public GetProductByIdWithFullPrimingHandler () {
    Core.getGlobalContext().register(this);
}

@Override
public void beforeCheckpoint(org.crac.Context<? extends Resource> context) throws Exception {
    APIGatewayProxyRequestEvent requestEvent =
    LambdaEventSerializers.serializerFor(APIGatewayProxyRequestEvent.class, ClassLoader.getSystemClassLoader())
    .fromJson(getAPIGatewayProxyRequestEventAsJson());
    this.handleRequest(requestEvent, new MockLambdaContext());
 }


private static String getAPIGatewayProxyRequestEventAsJson() throws Exception{
    final APIGatewayProxyRequestEvent proxyRequestEvent = new APIGatewayProxyRequestEvent ();
    proxyRequestEvent.setHttpMethod("GET");
    proxyRequestEvent.setPathParameters(Map.of("id","0"));
    return objectMapper.writeValueAsString(proxyRequestEvent);
 }

@Override
public void afterRestore(org.crac.Context<? extends Resource> context) throws Exception {
}

@Override
public APIGatewayProxyResponseEvent handleRequest(APIGatewayProxyRequestEvent requestEvent, Context context) {
      String id = requestEvent.getPathParameters().get("id");
      Optional<Product> optionalProduct = productDao.getProduct(id);
      return new APIGatewayProxyResponseEvent()
           .withStatusCode(HttpStatusCode.OK)
          .withBody(objectMapper.writeValueAsString(optionalProduct.get()));
....
}

I refer to part 4 for the explanation about how the Lambda SnapStart runtime hooks work. Please also read my article Using insights from AWS Lambda Profiler Extension for Java to reduce Lambda cold starts, on how I came up with this idea. I also described in this article in detail why it is supposed to speed things up. Shortly speaking, we primed another expensive LambdaEventSerializers.serializerFor invocation. It consists of class loading and expensive initialization logic, which I identified. By invoking handleRequest, we fully prime this method invocation, which consists mainly of DynamoDB request priming introduced in part 4. At the end, we also prime the APIGatewayProxyResponseEvent object construction.

In our example, we primed the APIGatewayProxyRequestEvent “get product by id equal to zero” request. This is enough to instantiate and initialize all we need, even if we’d like to invoke the “create product” request. This priming implementation is also a read request without any side effects. But if you’d like, for example, to prime a “create product” request, you can do it as well:

 private static String getAPIGatewayProxyRequestEventAsJson() throws Exception{
    final APIGatewayProxyRequestEvent proxyRequestEvent = new APIGatewayProxyRequestEvent ();
    proxyRequestEvent.setHttpMethod("POST");
    proxyRequestEvent.setBody("{ 'id': 0, 'name': 'Print 10x13', 'price': 15 }");
    return objectMapper.writeValueAsString(proxyRequestEvent);
 }

Use some artificial product ID like 0 or a negative one that isn’t used in production. If you use API Gateway HTTP API instead of REST API (like in our example), you can use APIGatewayV2HTTPEvent instead of APIGatewayProxyRequestEvent to prime such a request.

Measurements of cold and warm start times of our application with Lambda SnapStart and full priming

We’ll measure the performance of the GetProductByIdJava25WithDynamoDBAndFullPriming Lambda function mapped to the GetProductByIdWithFullPrimingHandler shown above. We will trigger it by invoking curl -H “X-API-Key: a6ZbcDefQW12BN56WEVDDB25” https://{$API_GATEWAY_URL}/prod/productsWithFullPriming/1.

We designed the experiment exactly as described in part 2.

I will present the Lambda performance measurements with SnapStart being activated for all approx. 100 cold start times (labelled as all in the table), but also for the last approx. 70 (labelled as last 70 in the table). With that, the effect of the snapshot tiered cache, which we described in part 3, becomes visible to you.

To show the impact of the SnapStart full priming, we’ll also present the Lambda performance measurements from all previous parts.

I did the measurements with java:25.v19 Amazon Corretto version, and the deployed artifact size of this application was 13.796 KB.

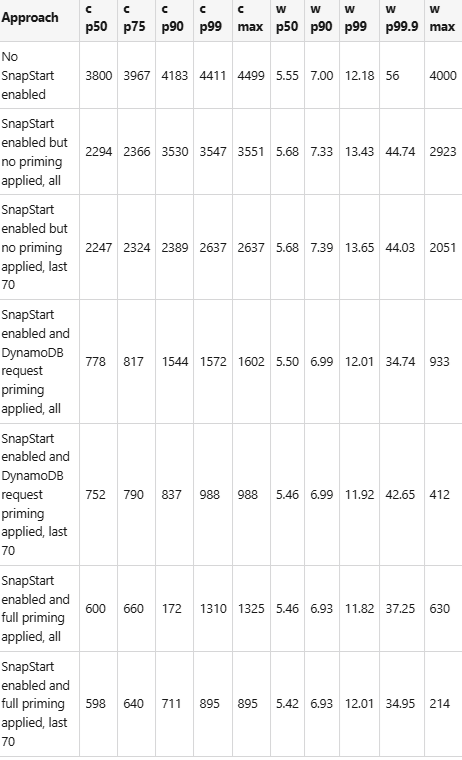

Cold (c) and warm (w) start time with -XX:+TieredCompilation -XX:TieredStopAtLevel=1 compilation in ms:

Conclusion

In this part of the series, we introduced how to apply another Lambda SnapStart priming technique. I call it API Gateway Request Event priming (or full priming). The goal was to even further improve the performance of our Lambda functions. We saw that by doing this kind of priming and writing even more additional (but simple) code, we could further reduce the Lambda cold start times compared to simply activating the SnapStart and doing DynamoDB request priming. It’s once again especially noticeable when looking at the “last 70” measurements with the snapshot tiered cache effect. Moreover, we could again significantly reduce the maximal value for the Lambda warm start times by preloading classes and doing some preinitialization work.

It’s up to you to decide whether this additional complexity is worth the Lambda function performance improvement. You could also be happy with its performance using the Lambda SnapStart with the DynamoDB request priming.

In the next part, we’ll introduce another approach to reduce the cold start time of the Lambda function – GraalVM Native Image. We’ll create the native image of our application and deploy it as a Lambda Custom Runtime.

Please also watch out for another series where I use a relational serverless Amazon Aurora DSQL database and additionally the Hibernate ORM framework instead of DynamoDB to do the same Lambda performance measurements.
