Introduction

In part 2, we explained how to deploy and run our conference search application on the Amazon Bedrock AgentCore Runtime as the MCP server. In this article, we’ll develop the (MCP-) client, capable of talking to our application running on AgentCore Runtime. Later, in part 3, we developed the (MCP-) client, capable of talking to our application running on AgentCore Runtime. In part 4, we looked at how to provide the MCP Tools for the Conference application via AgentCore Gateway in a centralized way.

As we saw in previous articles, the local MCP client for the Conference application, to talk to AgentCore Runtime or Gateway, became quite big. If we have many customers using such a client, changing and operating it can become quite challenging. That’s why, in this article, we look at how to deploy and run our MCP client on AgentCore Runtime.

Implement the MCP client for the Conference application and deploy it on AgentCore Runtime

Implement the MCP client for the Conference application

We’ll reuse the MCP client based on Spring AI that we implemented in parts 3 and 4. But as we need to make some small changes to deploy it on AgentCore Runtime, I created a new spring-ai-1.1-conference-app-agent-bedrock-agentcore-runtime. It consists of the agent and Infrastructure as Code subfolders.

Let’s first look at the changes that we need to make to the client. AgentCore Runtime also supports the HTTP protocol contract, which we’ll use to deploy our MCP client and talk to it. This contract puts some requirements on the client:

Container requirements:

Host : 0.0.0.0
Port : 8080 – Standard port for HTTP-based agent communication
Platform : ARM64 Docker container – Required for compatibility with the AgentCore Runtime environment. I usually borrow t4g small EC2 instance on AWS to build it.

Path requirements:

/invocations endpoint: POST endpoint for agent interactions
/ping endpoint: GET endpoint for health checks

You can read more about this topic in the HTTP protocol contract article.

The only changes we need to make to our REST Controller are to implement these path requirements. If we use asynchronous communication, the entry point looks like:

@PostMapping(value = "/invocations", consumes = { "*/*" })
public Flux<String> invocations(@RequestBody String prompt) {
   var token = getAuthTokenViaHttpClient();
   var client = McpClient.async(getMcpClientTransport(token)).build();
   ...
  var toolCallbacks = concatWithStream(asyncMcpToolCallbackProvider
 .getToolCallbacks(), ToolCallbacks.from(new DateTimeTools()));

  return this.chatClient.prompt().user(prompt)
	.toolCallbacks(toolCallbacks).stream().content();
}

For synchronous communication, the entry point looks like:

@PostMapping(value = "/invocations", consumes = { "*/*" })
public String invocations(@RequestBody String prompt) {
   var token = getAuthTokenViaHttpClient();
   var client = McpClient.async(getMcpClientTransport(token)).build();
   ...
  var toolCallbacks = concatWithStream(asyncMcpToolCallbackProvider
 .getToolCallbacks(), ToolCallbacks.from(new DateTimeTools()));

  return this.chatClient.prompt().user(prompt)
	.toolCallbacks(toolCallbacks).call().content();
}

For adding the path to /ping, we have different options. We can either add such a simple method:

@GetMapping("/ping")
public String ping() {
   return "{\"status\": \"healthy\"}";
}

Or use Spring Boot Actuator service and add some properties to the application.properties:

management.endpoints.web.exposure.include=health
management.endpoints.web.base-path=/
management.endpoints.web.path-mapping.health=ping

As we need to deploy our MCP client as an ARM64 Docker container, I also added a simple Docker file:

FROM amazoncorretto:25

COPY target/spring-ai-1.1-conference-app-agent-bedrock-agentcore-runtime-0.0.1-SNAPSHOT.jar app.jar
ENTRYPOINT ["java","-jar","/app.jar"]

Let’s build the Docker file and upload it to the Amazon Elastic Container Registry:

# build the application
mvn clean package

# build the Docker image
sudo docker build --no-cache -t spring-ai-conference-app-agent-bedrock-agentcore-runtime:v1

# Login to ECR
aws ecr get-login-password --region {region} | sudo docker login --username AWS --password-stdin {account_id}.dkr.ecr.{region}.amazonaws.com

# Create ECR repository (if it doesn't exist)
aws ecr create-repository --repository-name spring-ai-conference-app-agent-bedrock-agentcore-runtime --image-scanning-configuration scanOnPush=true --region {region}

# Tag the Docker image
sudo docker tag spring-ai-conference-app-agent-bedrock-agentcore-runtime:v1 {account_id}.dkr.ecr.{region}.amazonaws.com/spring-ai-conference-app-agent-bedrock-agentcore-runtime:v1

# Push the Docker Image to the ECR repository
sudo docker push {account_id}.dkr.ecr.{region}.amazonaws.com/spring-ai-conference-app-agent-bedrock-agentcore-runtime:v1

Please replace AWS {account_id} and {region} with our own values. Also, your version may not be v1 but a different one.

We can also build the Docker image by using Buildpack support built into Spring instead of a Dockerfile. Just use the Maven task spring-boot:build-image.

We don’t need to make any other changes on the MCP client itself.

Implement Infrastructure as for Code MCP client for the Conference to be deployed on AgentCore Runtime

Let’s now cover the IaC part with CDK for Java, which I implemented in RuntimeWithMCPStack stack. We’ve already covered many steps in creating the CDK App and Stack, and even the AgentCore Runtime with the MCP protocol, in part 2. For a more detailed explanation, I refer to this article.

First, let’s take a look at the creation of the AgentCore Runtime:

 Runtime.Builder.create(this, "MCPRuntime-125")
   .runtimeName(appName.replace("-", "_")+ "_runtime")
   .protocolConfiguration(ProtocolType.HTTP)
   .description("AgenCore Runtime with MCP protocol for running conference app")
      ...
   .build();

Here we set some common properties, such as the runtime name, description, and protocol (in our case, HTTP).

Now let’s look at the relevant code parts to assign this code artifact to the AgentCore Runtime:

var ecrImageURI= ConventionalDefaults.
    getContextVariableValueWithReplacedAccountId(this, "ecrImageURIForConferenceSearchAndApplicationAgent");

var agentRuntimeArtifact =
    AgentRuntimeArtifact.fromImageUri(ecrImageURI);
   ....

Runtime.Builder.create(this, "MCPRuntime-125")
    .agentRuntimeArtifact(agentRuntimeArtifact)
    ...
    .build();

First, we get the value of the variable ecrImageURI, which points to the imageURI in the ECR we pushed previously. This is typically done in the cdk.json:

{
  "app": "mvn -e -q compile exec:java",
  "context": {
      ""ecrImageUR": "{AWS_ACCOUNT_ID}.dkr.ecr.us-east-1.amazonaws.com/spring-ai-conference-app-agent-bedrock-agentcore-runtime:v1"
 }
}

Please adjust the value so that it matches your imageURI. We use the placeholder {AWS_ACCOUNT_ID} there. The reason for it is that I don’t want to expose the AWS account ID publicly. That’s why I wrote the following utility method getContextVariableValueWithReplacedAccountId in the ConventionalDefaults class to replace the placeholder with the real value:

static String getContextVariableValueWithReplacedAccountId(Stack stack, String contextVariableName) {
   var awsAccountId=(String)stack.getNode().tryGetContext("awsAccountId");
   if(awsAccountId == null || awsAccountId.trim().isEmpty()) {
      System.out.println("please provide your aws account id as as content to the call, for example: cdk deploy -c awsAccountId=1234567890101");
    }
   var contextVariableValue= getContextVariableValue(stack, contextVariableName);
   return replaceAWSAccountID(contextVariableValue, awsAccountId);
 }

static String getContextVariableValue(Stack stack, String contextVariableName) {
   return (String)stack.getNode().tryGetContext(contextVariableName);
 }

private static String replaceAWSAccountID(String configParam, String awsAccountId) {
   return configParam.replace("{AWS_ACCOUNT_ID}", awsAccountId);
}

Then we create AgentRuntimeArtifact from the image URI and set it as AgentCore Runtime agentRuntimeArtifact property.

Now let’s cover the next part – defining the IAM execution role. It’s very difficult to automate this part as it takes plenty of time. If I find it, I’ll provide the IaC part in the future :). I refer you to the article IAM Permissions for AgentCore Runtime for more information. You can also read my article Amazon Bedrock AgentCore Runtime – Part 2 Using Bedrock AgentCore Runtime Starter Toolkit with Strands Agents SDK, where I explained this part. In that article, we developed the agent in Python with the Strands Agents framework and deployed it on AgentCore Runtime.

Once we have defined the IAM role, we need to configure it in the cdk.json:

{
  "app": "mvn -e -q compile exec:java",
  "context": {
      "roleArnForTheAgentCoreRuntime": "arn:aws:iam::{AWS_ACCOUNT_ID}:role/service-role/spring-ai-conference-search-application-agentcore-runtime-role",
	....
   }
}

We use the placeholder for the AWS account ID as explained above. Here is the relevant code to grab the value of the roleArnForTheAgentCoreRuntime variable and set it to the execution role of the Runtime from the RuntimeWithMCPStack:

var roleArnForTheAgentCoreRuntime=ConventionalDefaults
   .getContextVariableValueWithReplacedAccountId(this, "roleArnForTheAgentCoreRuntime");

var role=Role.fromRoleArn(this,"roleArnForTheAgentCoreRuntimeRole", roleArnForTheAgentCoreRuntime);

Runtime.Builder.create(this, "MCPRuntime-123")
   .runtimeName(appName.replace("-", "_")+ "_runtime")
   ...
  .executionRole(role)
  .authorizerConfiguration(RuntimeAuthorizerConfiguration.usingIAM())
  .build();

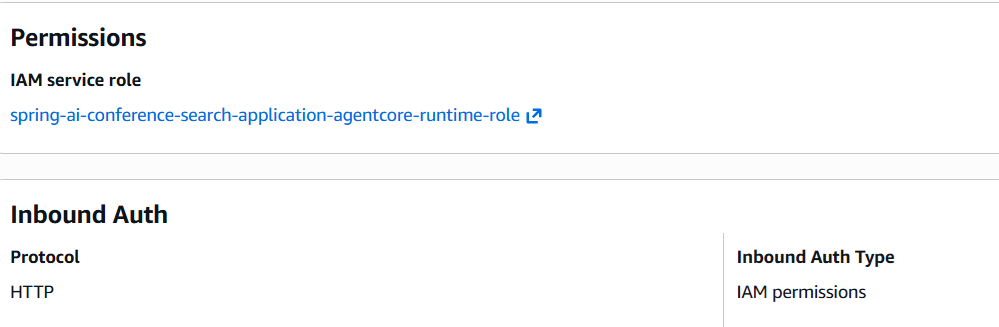

Here, we also use an IAM authorizer for the inbound AgentCore Runtime authentication. This is the default authentication and authorization mechanism that works automatically without additional configuration. You can also use JSON Web Tokens (JWT) as we showed in part 2.

Now we are ready to deploy our MCP client on the AgentCore Runtime. The command to do it is:

cdk deploy -c awsAccountId={YOUR_AWS_ACCOUINT_ID}

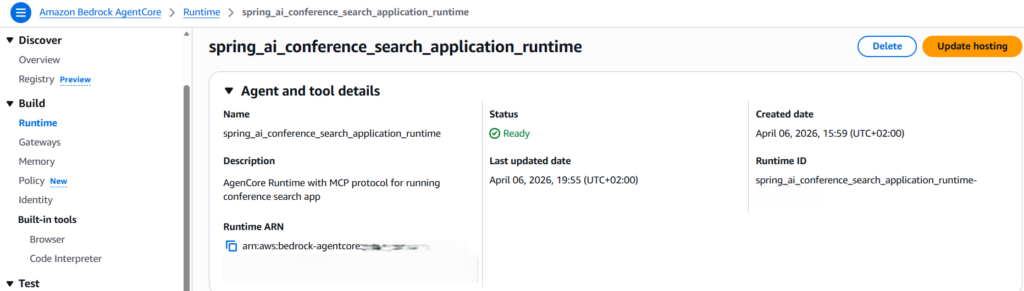

Here is how the AgentCore Runtime looks in the console after its creation:

We’ll need the Runtime ARN, which we see in the output of this command. Or we can grab it in the service console.

Implement the client to communicate with the Conference application deployed on AgentCore Runtime

Now we still need to write a client that communicates with our MCP client on the Runtime. I provided such an InvokeRuntimeAgent client written in Java, but you can use any programming language for which AWS provides a (bedrockagentcore) SDK:

private static final String AGENT_RUNTIME_ARN="arn:aws:bedrock-agentcore:us-east-1:{AWS_ACCOUNT_ID}:runtime/spring_ai_conference_search_application_runtime-143wvBghklZ";

void main() throws Exception {

 String payload =
   "{\"prompt\":\"Please provide me with the list of conferences, including their IDs,
with the Java topic happening in 2027, with the call for papers open today.
Also, provide me with the list of my talks with this topic in the title.
Finally, for each conference and talk retrieved, apply individually for the conference.\"}";

  var httpClient=ApacheHttpClient.builder()
	  .connectionTimeout(Duration.ofMinutes(5))
	  .socketTimeout(Duration.ofMinutes(5))
	  .build();

  var bedrockAgentCoreClient = BedrockAgentCoreClient.builder()
	  .region(Region.US_EAST_1)
	  .httpClient(httpClient)
	  .build();

  var invokeAgentRuntimeRequest = InvokeAgentRuntimeRequest.builder()
     .agentRuntimeArn(replaceAWSAccountID(AGENT_RUNTIME_ARN))
     .qualifier("DEFAULT")
     .contentType("application/json")
     .payload(SdkBytes.fromUtf8String(payload)).build();
      try (var responseStream = bedrockAgentCoreClient
	 .invokeAgentRuntime(invokeAgentRuntimeRequest)) {
	 var text = new String(responseStream.readAllBytes(), StandardCharsets.UTF_8);
        System.out.println(text);
}

First of all, we define RUNTIME_ARN, which we deployed in the step before. Please still use the {AWS_ACCOUNT_ID} placeholder, which will be dynamically replaced with your AWS Account ID. When we create BedrockAgentCoreClient. We also explicitly set the Apache HTTP client with the extended connection and socket timeouts. Default 30-second timeouts maybe to short for communication with the Runtime. Then we create InvokeAgentRuntimeRequest and set the agent Runtime ARN, qualifier (always DEFAULT), content type, and payload. The payload is our prompt. You can see the examples of the prompts in part 4 as we’re communicating with the same MCP client, but deployed elsewhere. When we invoke the invokeAgentRuntime method on the bedrockAgentCoreClient by providing the invokeAgentRuntimeRequest and convert the agent response to a string.

Conclusion

In this article, we looked at how to deploy and run our MCP client on AgentCore Runtime. With that, our MCP client now scales nicely within the Runtime.

Of course, you can create a nicer client by providing UI for entering the prompt and providing the agent response as a result. My goal was only to demonstrate how to implement such a client. Now we can change and redeploy our MCP client based on Spring AI on the AgentCore Runtime as often as we want. The client code remains unchanged as long as the Runtime ARN remains unchanged.

Starting from the next article, we’ll look at the Spring AI AgentCore functionality. Spring AI AgentCore SDK is an open-source library that brings Amazon Bedrock AgentCore capabilities into Spring AI through familiar patterns: annotations, auto-configuration, and composable advisors.
